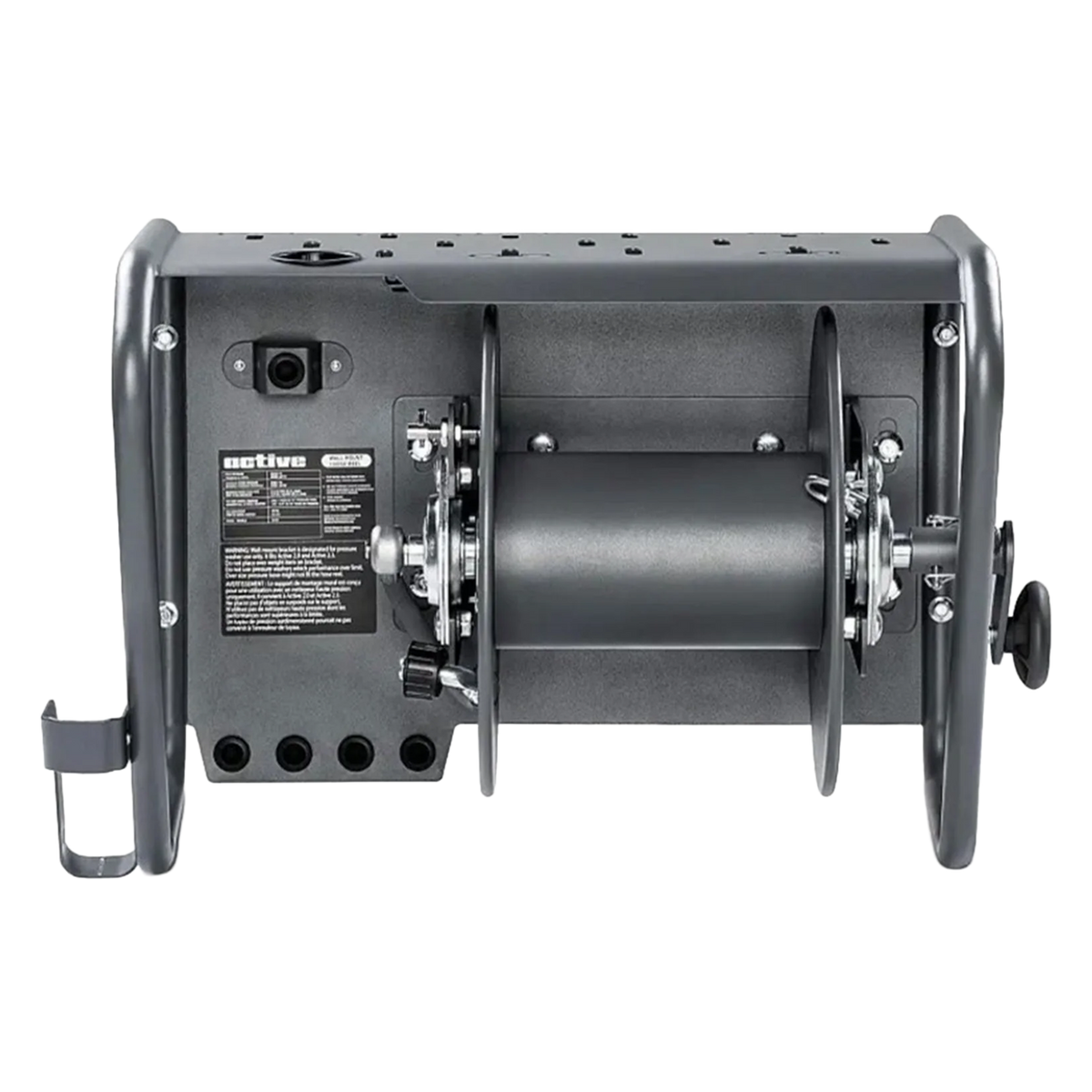

Active Pressure Washer Wall Mount Overview
Important Availability Note: This product is only available as an in-store Click and Collect item or for delivery to Northern Ireland addresses.

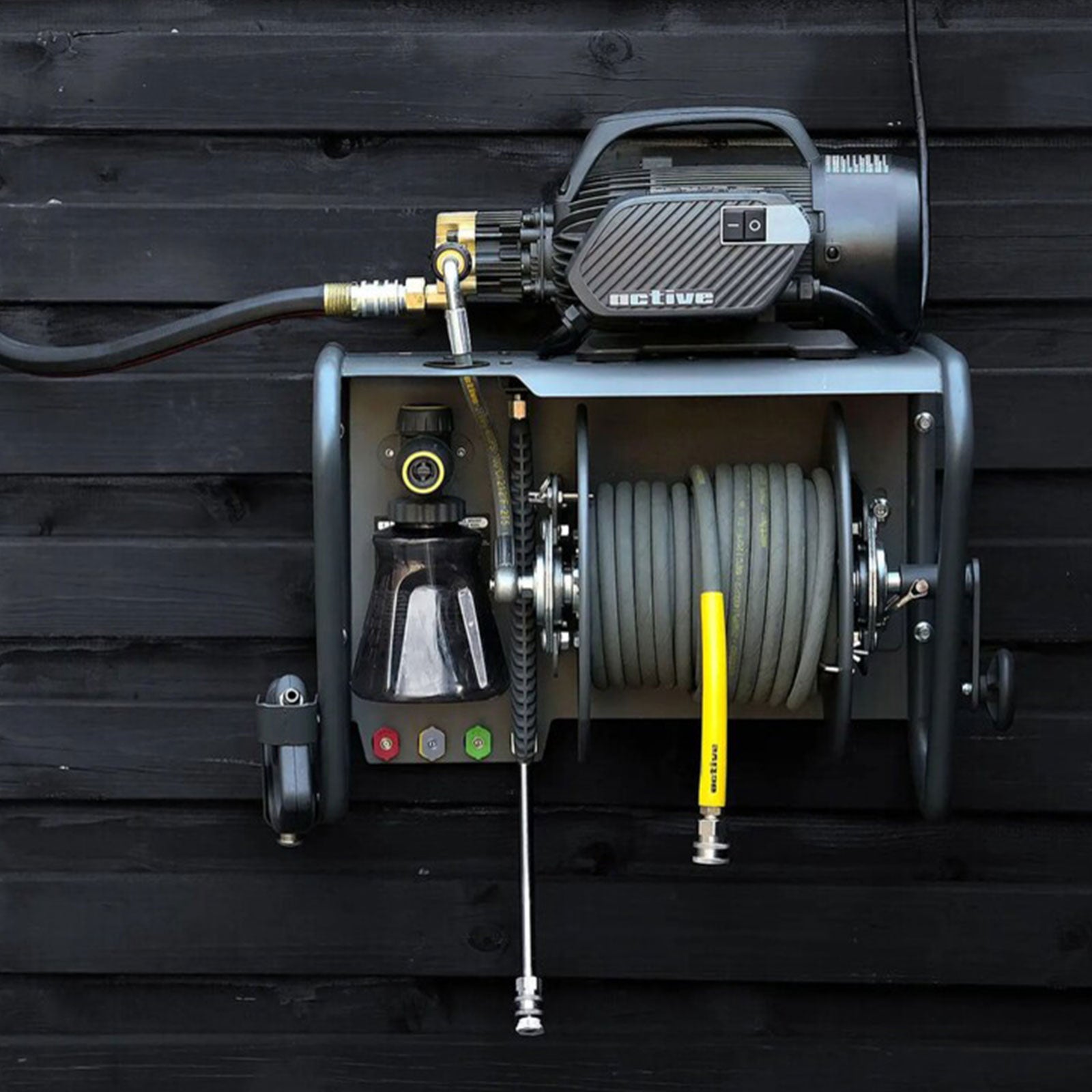

The Active Pressure Washer Wall Mount is a premium-grade storage solution designed to complement your pressure washing setup. Built for performance and durability, this heavy-duty hose reel keeps your workspace clean and organised while protecting your hose from wear, kinks and damage.
Engineered for use with Active pressure washers and accessories, the reel is compatible with up to 30m of 3/8" and 45m of 5/16" high-pressure hose. The smooth rewind function, integrated handle and wall-mount bracket make setup easy while allowing quick deployment and tidy storage between uses.
Active Pressure Washer Wall Mount Key Benefits
-
Wall-Mountable Storage – Securely installs to most vertical surfaces for stable and accessible hose storage.
-
Smooth Rewind Operation – Features a fluid rewind system with a comfortable hand crank for easy winding and unwinding.
-
Durable Construction – Made with corrosion-resistant materials to withstand outdoor use and frequent pressure washing.
-
Tangle-Free Hose Management – Keeps your hose off the ground, helping prevent twists, kinks and unnecessary damage.
-
Accessory Storage Slots – Dedicated slots for a pressure washer gun, foam cannon, lance and 4 nozzles.
-
Integrated Wash Setup – Designed to tie the Active pressure washer range and accessory bundle together.
Features
-
Wall-Mountable: Securely installs to most vertical surfaces for stable and accessible hose storage.
-
Smooth Operation: Features a fluid rewind system with comfortable hand crank for easy winding and unwinding.
-
Durable Construction: Made with corrosion-resistant materials to withstand outdoor use and frequent pressure washing.
-
Universal Fit: Designed to accommodate up to 30m of 3/8" and 45m of 5/16" high-pressure hose, compatible with Active pressure washers and other systems.
-
Tangle-Free Management: Keeps your hose off the ground, preventing twists, kinks and unnecessary damage.
-
Space-Saving Design: Compact and functional, ideal for tidy storage in tight workspaces or garages.
Technical Specifications
-
Inlet Fitting: 3/8" QC female coupler
-
Outlet Fitting: M22x14mm
-
Extension Hose: Pre-installed
-
Reel Rotation Lock: Release lock pin before turning the reel
-
Hand Crank: Customer must install hand crank and lock by pin
-
Hose Clamp: Customer needs to make adjustment to secure hose
-
Reel Valve: Stainless steel 304
Metal Frame
- Hose reel is pre-installed on frame
- Customer installation is required for wall mount mode
- Customer installation required for gun holder and fasten by screw
- Customer adjustment is required for hose clip
Included Hardware and Accessories
- 4pcs 6x30mm screws to fasten mounting plate on the wall
- 4pcs M8x20mm bolts to secure wall mount to mounting plate
- 2pcs M5x14 bolt to secure gun holder on frame
- Hand crank with lock pin
- Mounting plate
- Gun holder
- Hardware kit
- Jumper / lead hose to pressure washer: M22 x 14mm female
Measurements
-
Outer Disc Diameter: 300mm
-
Inner Barrel Diameter: 120mm
-
Reel Width: 200mm
-
Maximum Hose Capacity: 5/16" pressure hose, 100ft
-
Metal Cage Dimensions: 525 x 350 x 405mm
-
Mounting Plate Bolt Holes Layout: 16 inches x 5.6 inches x Ø8.0mm
-
Maximum Loading Capacity: 40kg
Frequently Asked Questions
-
What additional equipment do I need to use the Active wall mount? This kit is optimised for the Active 2.0 and 2.3 pressure washers and accessories, but it can store any washer with M22-14mm outlets. For an M22-15mm washer, you will need a separate M22-15 jumper hose. Any accessory with a 1/4" male plug, such as a foam cannon, lance or nozzle, can be parked in the accessory mounts.
-
Can this kit be used with non-Active pressure washers? Yes. While optimised for Active 2.0 and 2.3, the included jumper hose terminates in M22-14mm. To use with an M22-15mm washer, purchase a compatible M22-15 jumper hose.
-
Can the wall mount and hose reel be used with the Active VE52/VE56? Yes, but you will need a separate M22-15mm to 3/8" adapter so the hose is compatible with the VE52/VE56 outlet.
Complete your pressure washing setup with the Active Pressure Washer Wall Mount, a smart, durable upgrade that adds professionalism, order and easy hose management to your detailing environment.
Please note: Active accessories are not included, but are available to purchase separately.
